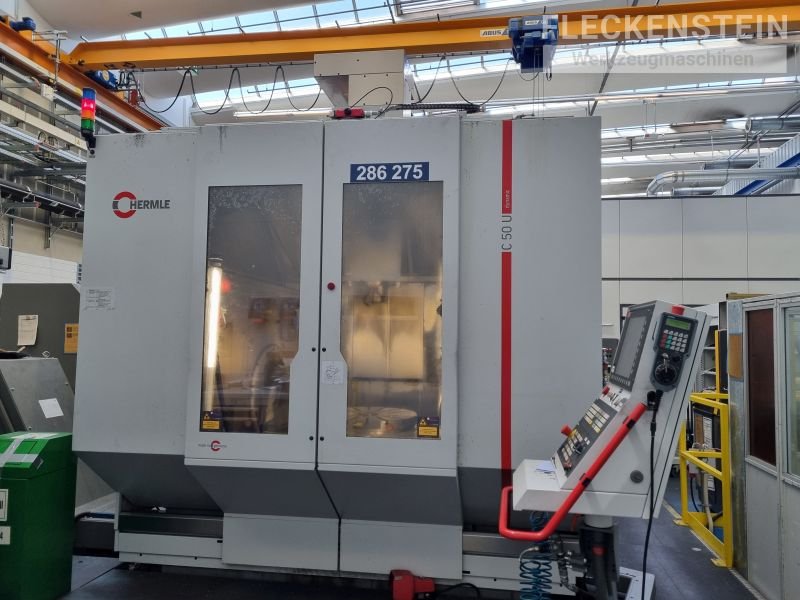

HERMLE C50 U dynamic 2009
- Zustand: gebraucht
- veröffentlicht: 16/10/2025
- 25IND47724
Technische Daten
- Zustand: gebraucht
- Jahr: 2009
- X-Achsen-Verfahrweg: 0/1000 mm
Beschreibung

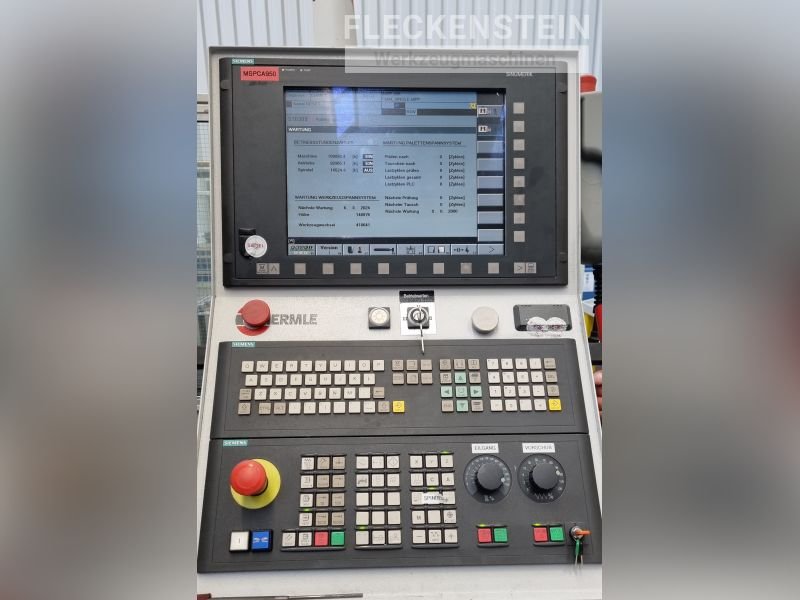

CNC – 5-Axis Machining Center HERMLE C50 U dynamic HEIDENHAIN iTNC 530 built 2009

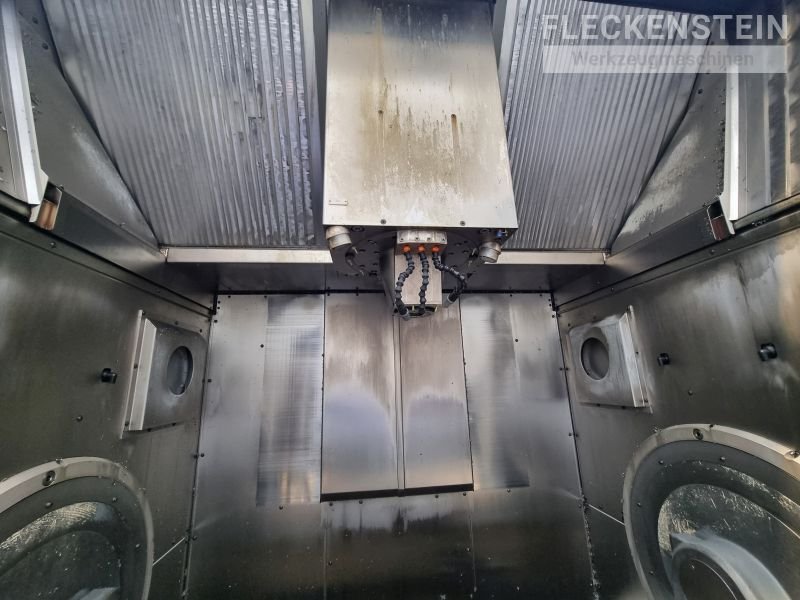

Working Area
X-Axis (horizontal) 1.000 mm
Y-Axis (cross) 1.150 mm
Z-Axis (vertical) 750 mm
Distance from sp ...
CNC – 5-Axis Machining Center HERMLE C50 U dynamic HEIDENHAIN iTNC 530 built 2009
Working Area
X-Axis (horizontal) 1.000 mm
Y-Axis (cross) 1.150 mm
Z-Axis (vertical) 750 mm
Distance from spindle tip to table 950 mm
Y-Travel from table center + 500 / - 600 mm
Max. Workpiece diameter Ø 1.000 mm
Max. Workpiece height 810 mm

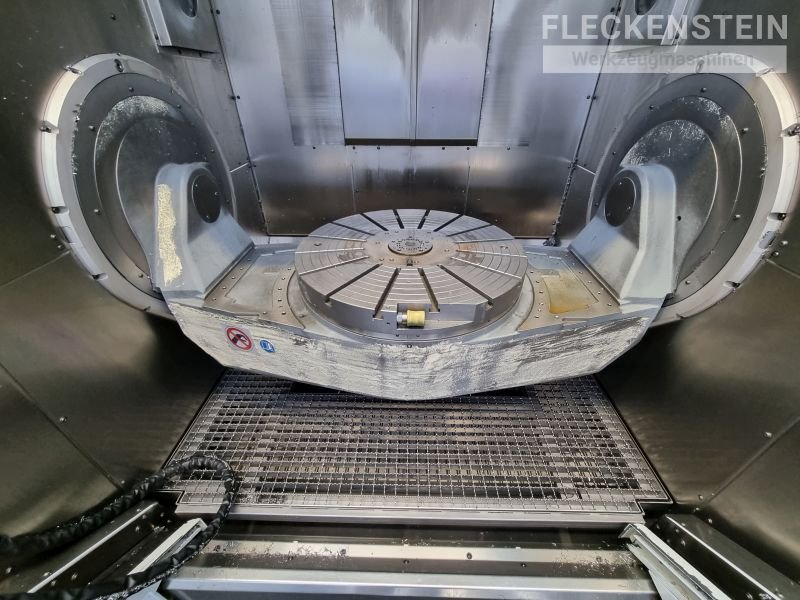

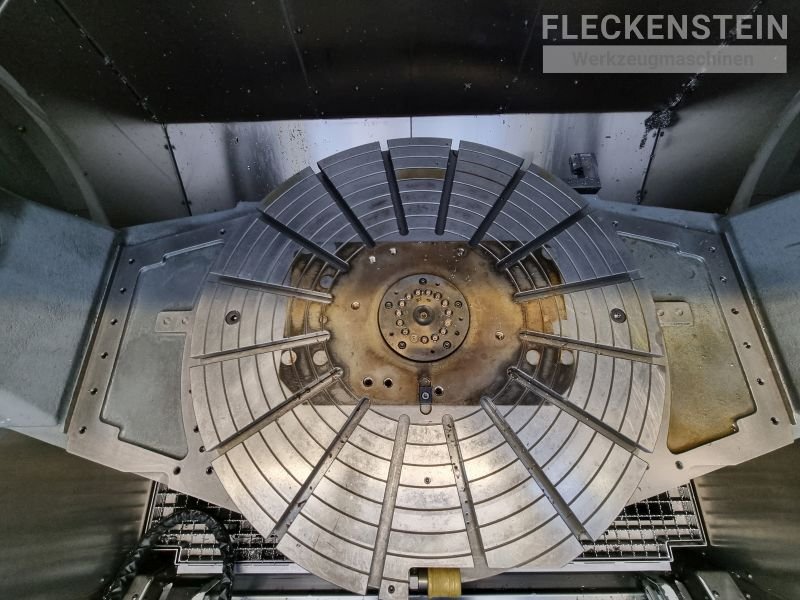

NC-Rotary Table
NC swivel rotary table with bearings on both sides in the side walls of the machine bed and tandem drive in the A-axis.
The maintenance-free, directly driven rotary table operates absolutely backlash-free.
The rotary drive of the C-axis with torque motor from Hermle (type SRT D700) is water-cooled
Diameter clamping surface Ø 700 mm
Max. table load 2.000 kg
Interference circle Ø 1.310 mm
Number of t-slots (radial) 16 pcs. 14 H7
Rotation range C-axis 360 Grad
Clamping torque C-axis 10.000 Nm Hydraulically
Holding torque C-axis 1.190 Nm
Swivel range A-axis (+100/-130) Grad
Holding torque A-axis 9.130 Nm permanent position control
Rotary feedthrough 15-fold
Milling spindle, KESSLER
Max. Power (100% ED) 17,5 kW from 1.550 rpm
Max. continuous torque (100%) 108 Nm
Spindle speed 20 - 18.000 rpm
Tool holder HSK-A63
Max. Tool diameter Ø 160 mm
Spindle diameter at the front bearing. Ø 70 mm

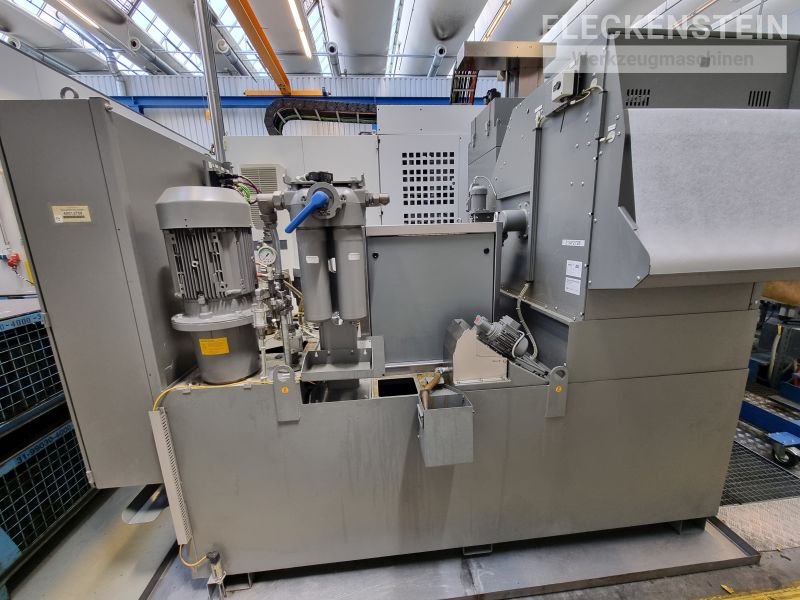

High pressure internal cooling 80 bar
Working Area
X-Axis (horizontal) 1.000 mm
Y-Axis (cross) 1.150 mm
Z-Axis (vertical) 750 mm
Distance from spindle tip to table 950 mm
Y-Travel from table center + 500 / - 600 mm
Max. Workpiece diameter Ø 1.000 mm
Max. Workpiece height 810 mm
Magazine and Toolchanger
Number of tool positions 60
Tool holder HSK-A63
Max. tool length tool length 430 mm
Max. tool diameter Ø160 mm
Max. Tool weight 15 kg
Max. Total load 480 kg
DIN / shape DIN 69063
