DANOBAT R3-4000-S5 2025
- Zustand: gebraucht
- veröffentlicht: 16/10/2025
- 25IND47720
Technische Daten
- Zustand: gebraucht
- Jahr: 2025
- Abstand zwischen den Spitzen : > 2000 mm
Beschreibung
Universal cylindrical grinding machine for heavy workpieces DANOBAT R3-400-S% built 2001- Refurbished 2025 SINUMERIK 840 D
Working area
Max. Peak widht 4.000 mm
Max. Workpiece Ø 850 mm
Peak ...
Universal cylindrical grinding machine for heavy workpieces DANOBAT R3-400-S% built 2001- Refurbished 2025 SINUMERIK 840 D
Working area
Max. Peak widht 4.000 mm
Max. Workpiece Ø 850 mm
Peak height 525 mm
Max. Workpiece weight. between centres with steady rests 5.000 kgs
Feeds & travels
Feed rate Z-axis 0,01 – 6.000 mm/min
Feed rate X-axis 0,01 – 6.000 mm/min
Travel Z-axis (table) 4.500 mm
Travel X-axis (grinding spindle) 650 mm

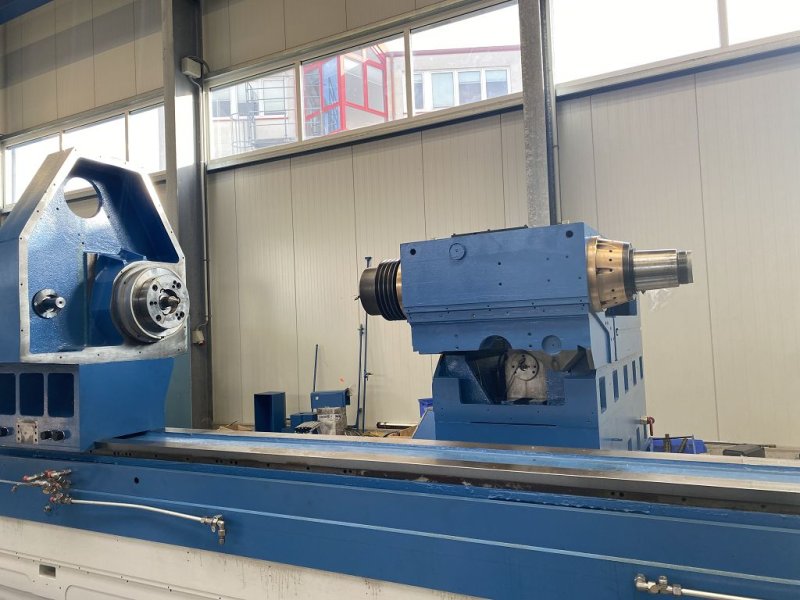

Grinding wheel
Max. dimension Ø1.060x60x304,8 mm
Grinding wheel speed 1.100 min-1
Peripheral speed 45 m/sec
Power 22 kW 52 kW (60% ED)

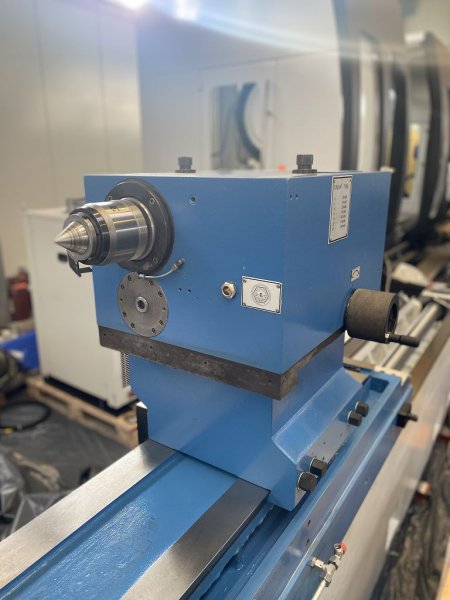

Tailstock
Taper MK 6
Pinole way 100 mm
Pinole-Ø 115 Mm

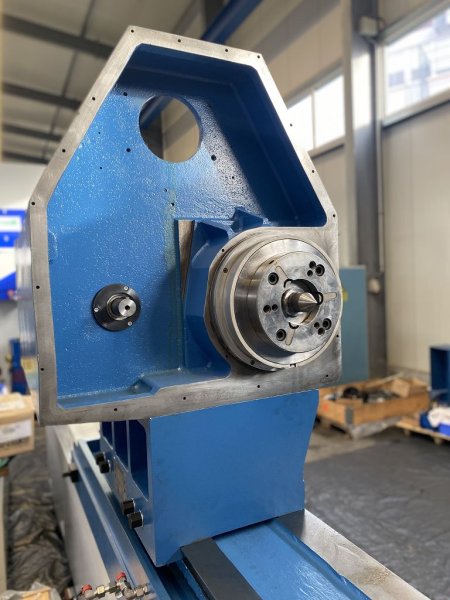

Workpiece spindle
Taper MK 6
Speed range workpiece 10 - 120 min-1
Torque drive motor 41,5 Nm
Scope of retrofit:
• Slideways of X- and Z-axis regrinded, intermediate table and top table regrinded
• Centre height of headstock and tailstock readjusted
• Machine checked from the bottom up and rebuilt
• Cabling in the machine renewed
• Hydraulic tubes and lines renewed
• Ball screws of X- and Z-axis renewed
• New bellows
• Wearing parts replaced
• New machine painting in two-layer-structure with oil-resistant and abrasion-resistant two-component paints, color RAL 7035 light gray and RAL 5007 brilliant blue

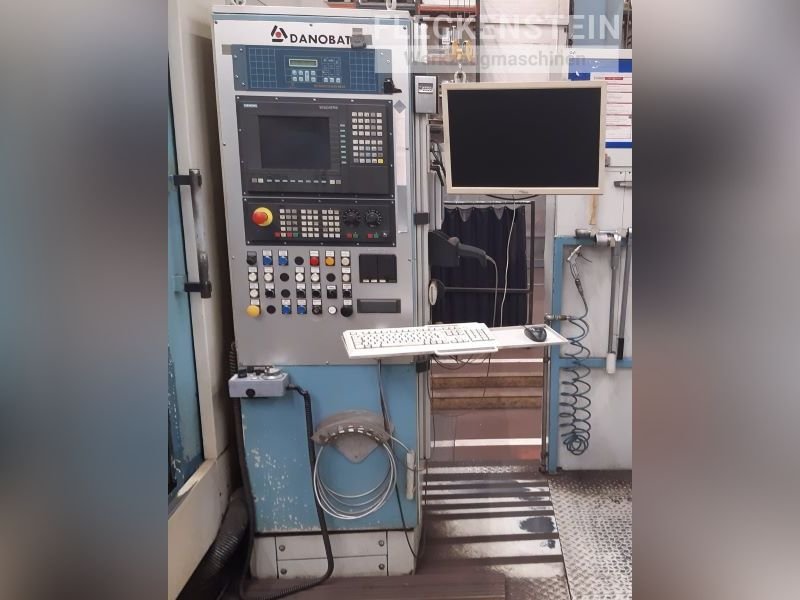

• CNC Control SINUMERIK 840 D
• New balancing of the grinding wheel
• 2 pc. Grinding wheels Ø 1.000 x 60 x 304,8 mm

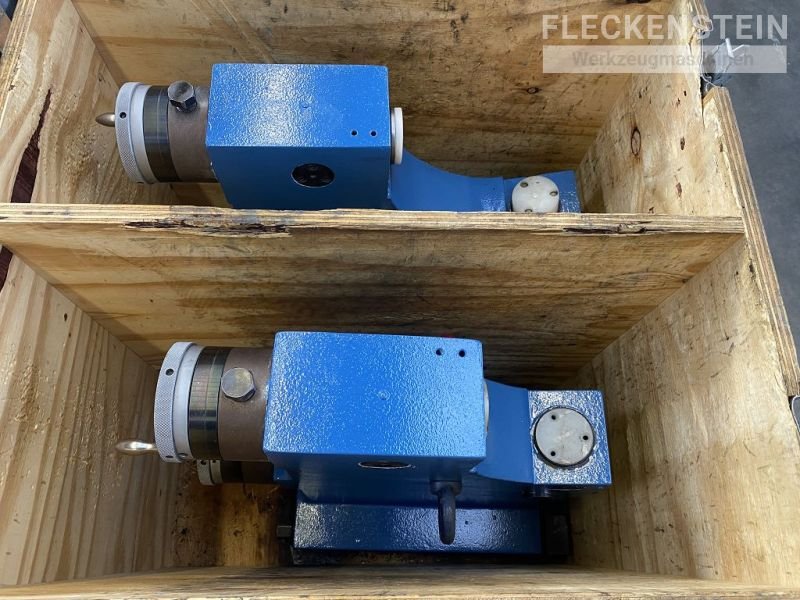

• 2 pcs. Support bearing
• front-end dog + 1 pc. travelling tailstock tip
• Coolant unit with belt filter

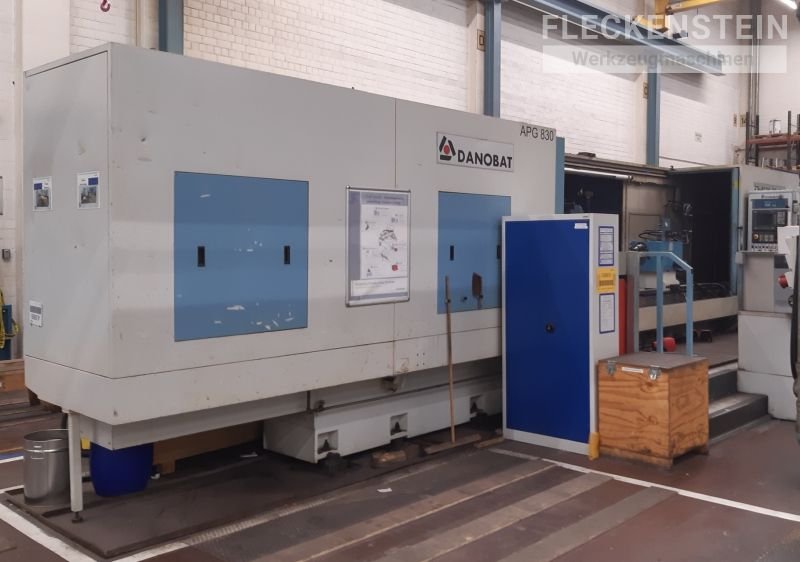

• Full enclosure of the workspace with 2 large sliding doors
• Extraction unit for emulsion mist
Überarbeitet
CE-konform
