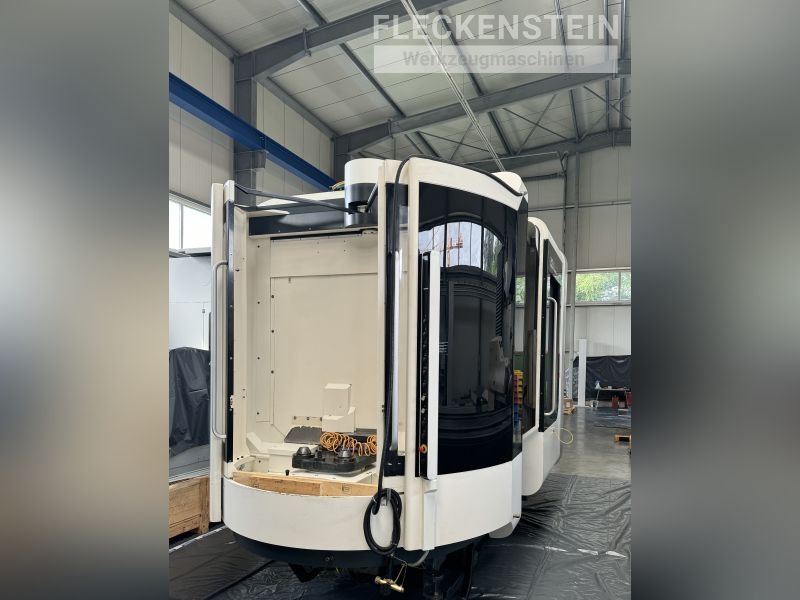

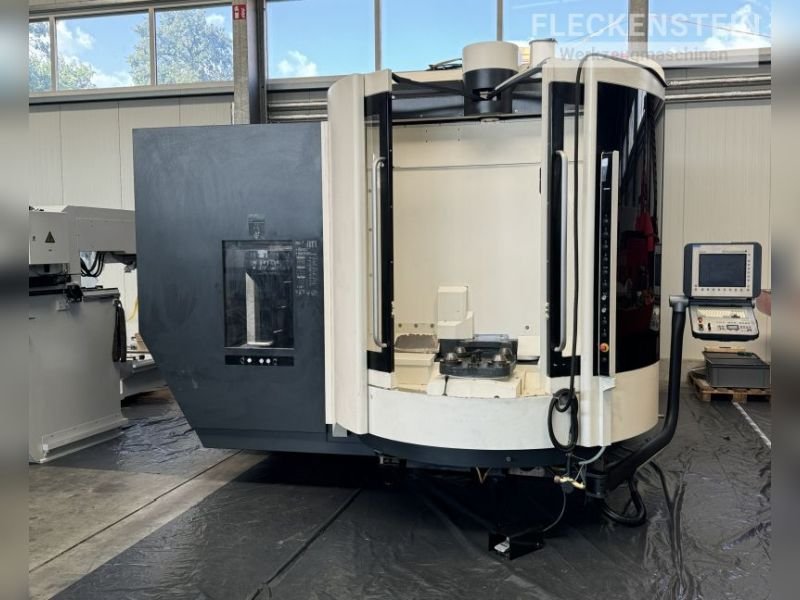

DMG DECKEL MAHO DMC 80 duoBlock 2009
- Zustand: gebraucht
- veröffentlicht: 16/10/2025
- 25IND47696
Technische Daten
- Zustand: gebraucht
- Jahr: 2009
- X-Achsen-Verfahrweg: 0/1000 mm
Beschreibung

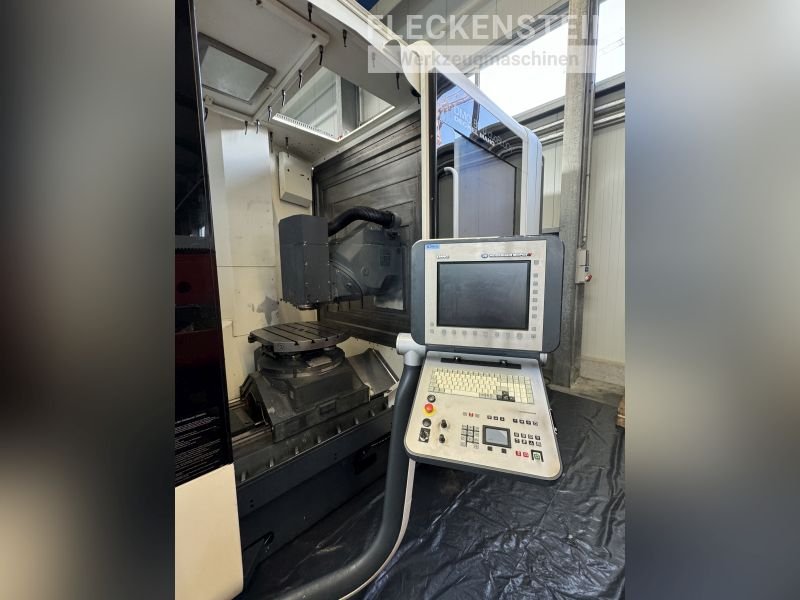

CNC – 5-Axis Machining Center, DMC 80 U duoBlock, Heidenhain MillPlus IT, built 2009, X/Y/Z 800/800/800 mm, max workpiece heiht 1.330 mm, Mmx. workpiece length 450 mm max. workpiece Ø 800 mm, nc r ...

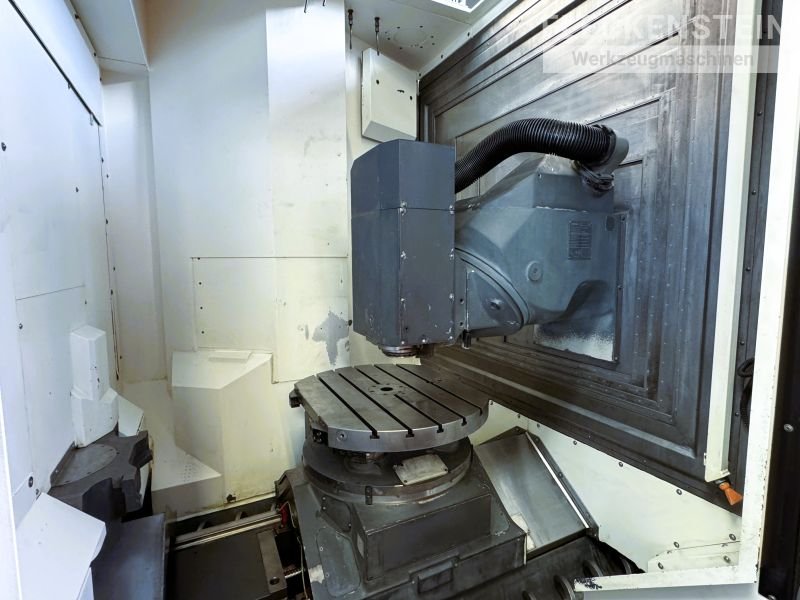

CNC – 5-Axis Machining Center, DMC 80 U duoBlock, Heidenhain MillPlus IT, built 2009, X/Y/Z 800/800/800 mm, max workpiece heiht 1.330 mm, Mmx. workpiece length 450 mm max. workpiece Ø 800 mm, nc rotary table Ø 800 x 630 mm resolution of C axis 0,001 °, max workpiece weight 1.200 kgs, universal miling head b-Axis 180°, 28 kW, 20-18.000 min-1. ATC 120-fold, feeds X-, Y- and Z-Axis stepless 0 - 60.000 mm/min ,
Universal milling machine in a very solid "duoBlock" design with NC rotary table, tool magazine and pallet changer.
Überarbeitet
CE-konform
