GLEASON-PFAUTER P1200 G 1998
- Zustand: gebraucht
- veröffentlicht: 16/10/2025
- 25IND47595
Technische Daten
- Zustand: gebraucht
- Jahr: 1998
Beschreibung

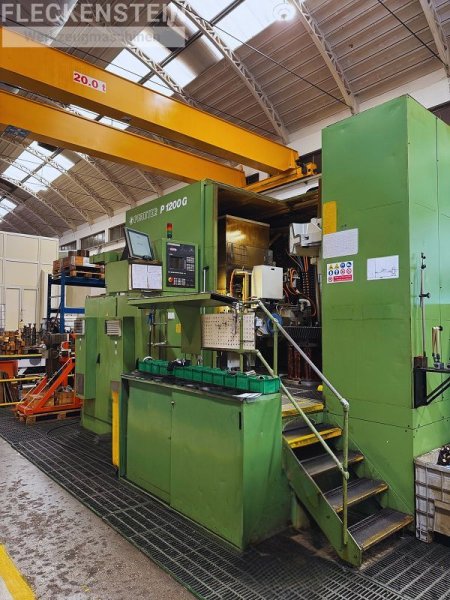

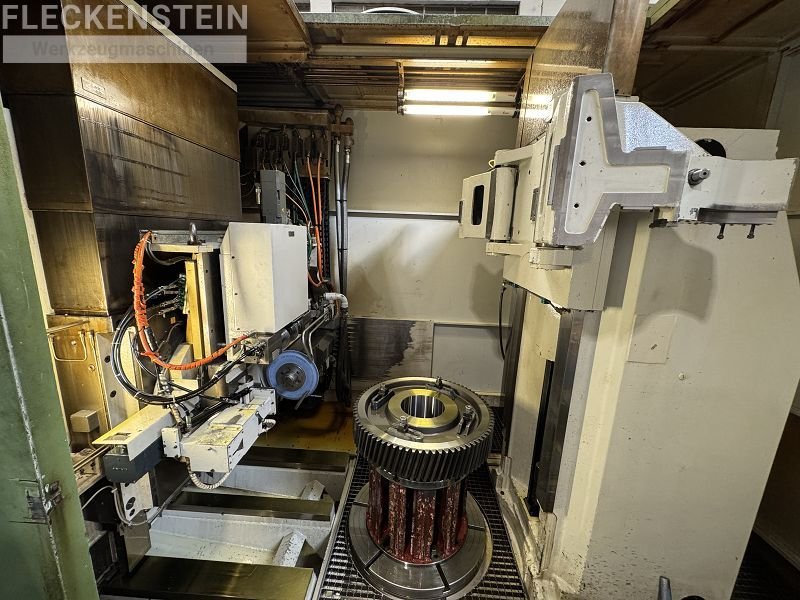

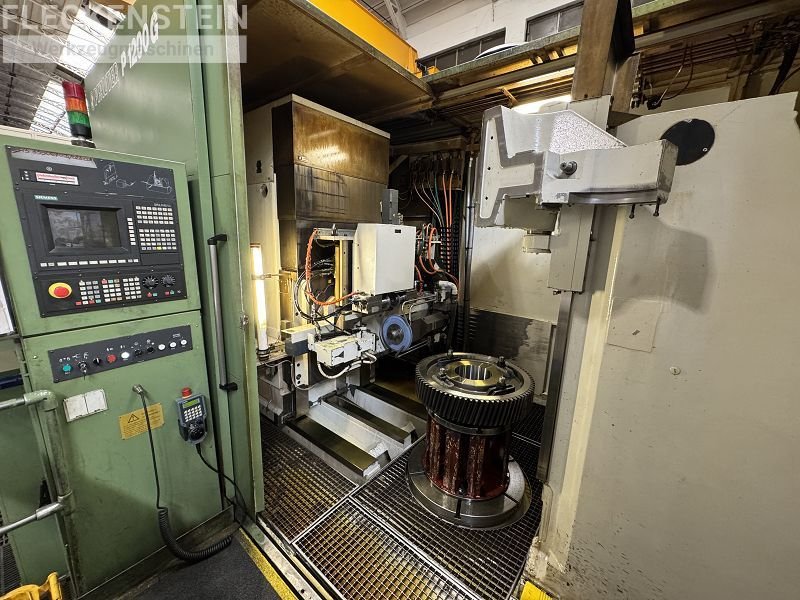

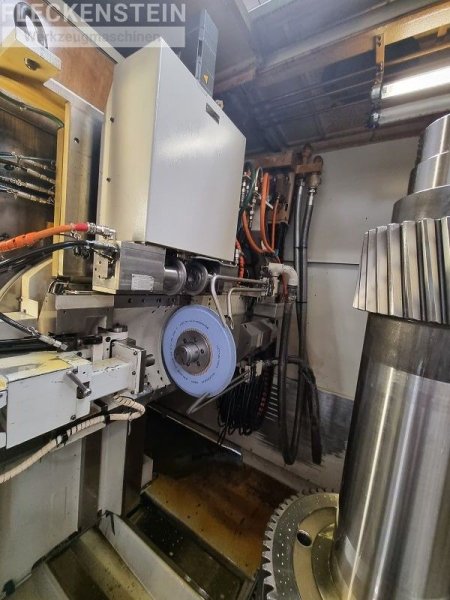

CNC-Profile Grinder for cylindrical Gears GLEASON_PFAUTER P1200G, control SINUMERIK 840C, built 1998, workpiece diameter 1200 mm, max. radial travel 770 mm,
max, tangential travel 300 mm, max. axia ...
CNC-Profile Grinder for cylindrical Gears GLEASON_PFAUTER P1200G, control SINUMERIK 840C, built 1998, workpiece diameter 1200 mm, max. radial travel 770 mm,
max, tangential travel 300 mm, max. axial travel 700 mm, lowest grindign wheel position above table 470 mm, max priofile depth 80 mm, grindign spindle swivel angle
+/- 45 degrees, oute diamter 800 mm, bore diameter x depth Ø 300 x 900 mm, max tabellaod 10to, drive pwoer 24 kW, Grinding arbor Ø 80 mm, counter holder,

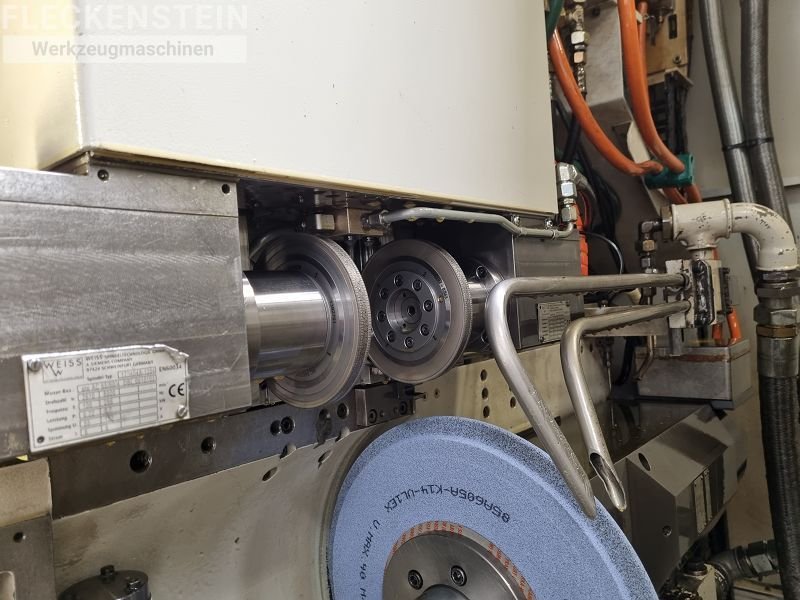

nc dressing unit.
