ELB-SCHLIFF ROTARY 60 STC 2007
- Zustand: gebraucht
- veröffentlicht: 16/10/2025
- 25IND47592
Technische Daten
- Zustand: gebraucht
- Jahr: 2007
Beschreibung
Rotary Table Surface Grinding Machine ELB SCHLIFF, ROTARY 60 STC, Siemens STC, built 2007 | 2026,
table Ø 600 mm, grinding height over table 600 mm, table load 300 kgs, speed 20- 80 1/min,
Y – ...

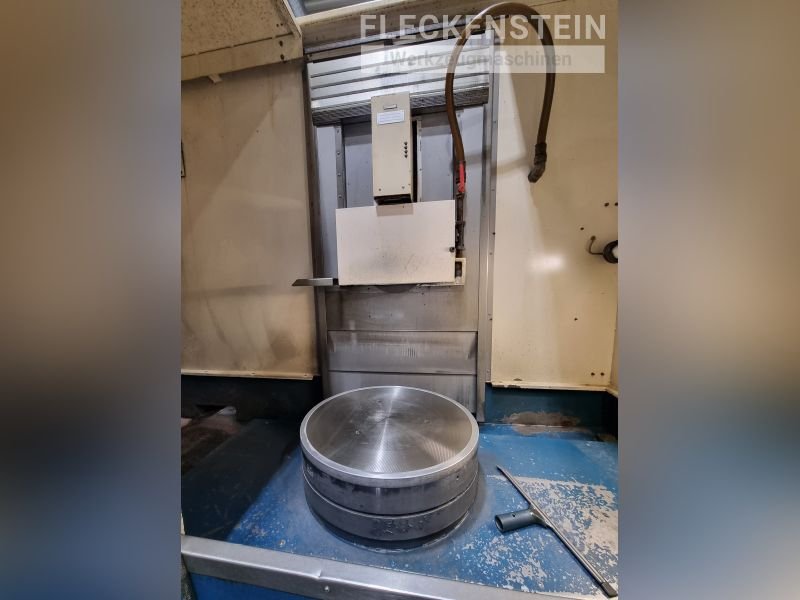

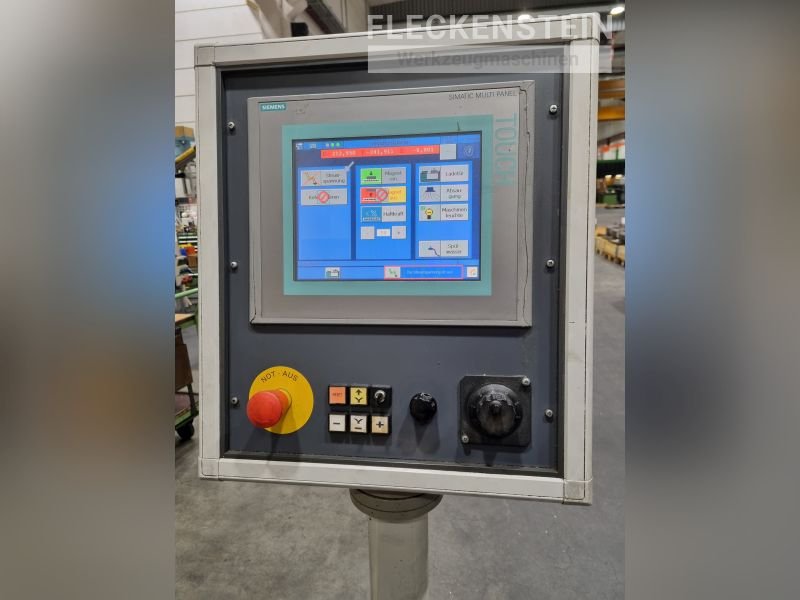

Rotary Table Surface Grinding Machine ELB SCHLIFF, ROTARY 60 STC, Siemens STC, built 2007 | 2026,
table Ø 600 mm, grinding height over table 600 mm, table load 300 kgs, speed 20- 80 1/min,
Y – Axis – Vertical Adjustment of the grinding spindle
Grinding column Meehanite-casting
Guiding system V-flat guideways
measuring system Heidenhain glass scale
Travel vertical 600 mm
Z-axis - cross adjustment
Cross slide Meehanite-casting
Guiding systems Linear roller bearings
Measuring system rotary encoder, incremental
Cross travel 355 mm
Overhead dressing unit
Dressing travel 100 mm
Dressing speed 80 – 800 mm/min
Dressing spindle cone MK0
Dressing diamond 0,75 CRT
Grinding spindle
Grinding spindle cone 60 mm
Power 15 kW
Spindle bearing axial and radial backlash free
Lubrication grease lubrication
Grinding spindle speed 1.500 – 3.500 1/min
Grinding wheel measuring 400 x 100 x 127 mm (D x B x d)
Measuring, weight
dimensions ca. 2,6 x 3,5 x 3,2 m
weight ca. 6.000 kg
Überarbeitet
CE-konform
